Replacing Sprinkler Heads: A Step-by-Step Guide

Introduction to Sprinkler Head Replacement

The process for replacing sprinkler heads is similar for both pop-ups and rotors. This guide demonstrates replacing a broken pop-up sprinkler head, but the steps apply to both types.

Identifying Sprinkler Damage

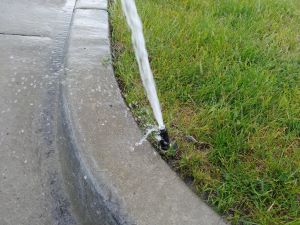

This pop-up sprinkler was damaged by an edger, which sliced through the top and broke the threads that hold the nozzle in place. Such damage necessitates a full replacement of the sprinkler head.

Exposing the Sprinkler Head

If you're replacing the sprinkler head with an identical model and the existing head was level with the ground, dig up and expose the broken head all the way to the first fitting. This allows for easy replacement without disturbing the entire assembly.

Addressing Improper Installation

If the existing sprinkler head wasn't level with the ground, you'll need to dig up the entire swing joint. If there's no existing swing joint, you should add one to prevent future damage.

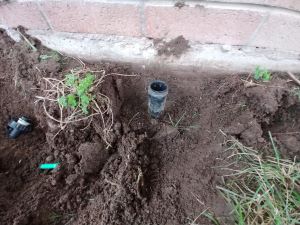

This head was sheared off by a mower because it wasn't level with the surface, illustrating why adding a swing joint is often necessary when replacing sprinkler heads.

Learn How to Add a Sprinkler Head with a Swing Joint

Removing the Old Sprinkler Head

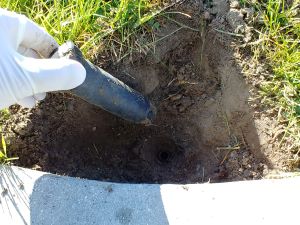

Carefully remove the broken head, taking precautions not to get dirt in the pipe or threads of the sprinkler line. This ensures a clean connection for the new head.

Installing the New Sprinkler Head

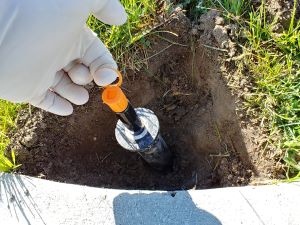

Thread on the new sprinkler head, ensuring it's properly aligned and securely fastened to prevent leaks.

Finishing the Installation

Install or replace the sprinkler nozzle as needed. After installation, replace the sod and level the ground to ensure the new sprinkler head is properly positioned.
