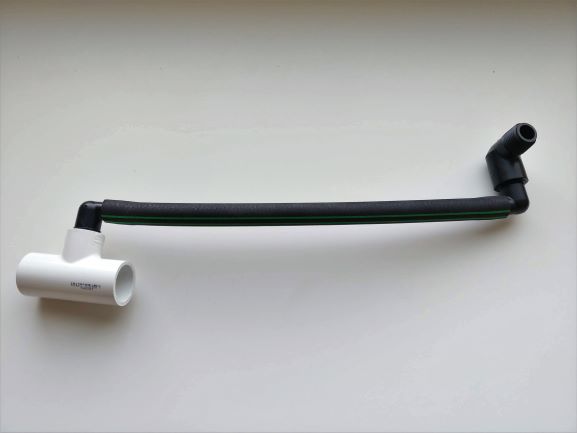

This image demonstrates a fully assembled swing joint. Adding sprinkler heads is generally straightforward, provided the zone has sufficient supply to support the new sprinkler head.

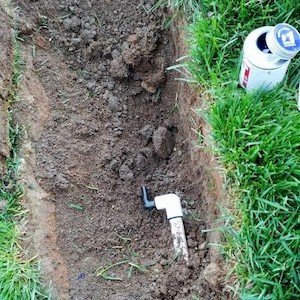

First, locate the existing line. In this example, I found a capped end close to where a new head is needed. Cut the line and allow the line to drain completely before proceeding with any gluing.
For lateral lines, ypu can use a glue that contains primer. Note: When working on pressurized lines (such as main lines), always apply primer before gluing for a secure connection.
These images illustrate the assembly of a swing joint. The Swing Pipe / Funny Pipe can be any length, but remember not to exceed 3 GPM for distances over 3 feet to maintain optimal sprinkler performance.
While backfilling, hold the sprinkler head in place to ensure it remains level with the surface. It's crucial to keep the head straight and vertical, as proper alignment directly affects its performance.
Carefully backfill the area around the new sprinkler head. This prepares the ground for sod replacement and helps stabilize the sprinkler assembly.
When replacing the sod, it may initially sit high and uneven. Carefully press it back into a level position. You may need to tamp or gently stomp the area to achieve a flat, even surface.
After allowing sufficient time for the glue to dry, test the sprinkler station. Ensure it functions properly and verify that the new sprinkler head is straight and operates correctly.
