Free Sprinkler System Layout Diagrams & Installation Details
Download professional sprinkler system layout diagrams and irrigation installation details. Includes valve manifolds, backflow preventers, swing joints, and sprinkler valve wiring diagrams. Perfect for DIY installers, contractors, and permit applications.
Professional Sprinkler System Layout Diagrams - Completely Free
Created by Kevin Steed using the Detail Generator: These diagrams represent my preferred installation methods based on years of professional irrigation experience. I created each detail using my free Detail Generator tool to showcase proven techniques that work reliably in the field.
Important Note: There are many valid ways to install irrigation components. These diagrams show my preferred approaches - not the only way to do these installations. Your local codes, specific site conditions, or installer preferences may require different configurations. Use these as a starting point and adapt them to your specific needs.
Free Lawn Sprinkler Layout Examples Include:
- Sprinkler valve replacement diagrams - Single valve, 2-valve manifold with drain, and drip valve installations with complete wiring details
- Valve manifold diagrams - Top-down view of 2-zone manifold with hose bib drain connection for easy winterization and manual watering
- Backflow preventer installation - Both PVB and RP backflow preventer layouts with proper heights and connections
- Swing joint assembly details - Professional swing joint installation for sprinkler head connections
- Stop and waste valve diagrams - Complete winterization and system shutdown installations
- High-resolution, print-ready format - Perfect for job sites, permit applications, or reference materials
Create Your Own Preferred Installation Methods
I created all of these diagrams using my free Irrigation Detail Generator to show my preferred installation approaches. You can use the same tool to create diagrams showing your preferred methods, different part configurations, or site-specific installations. There's no single "right way" - create diagrams that match your techniques and local requirements.
Launch Detail Generator Tool

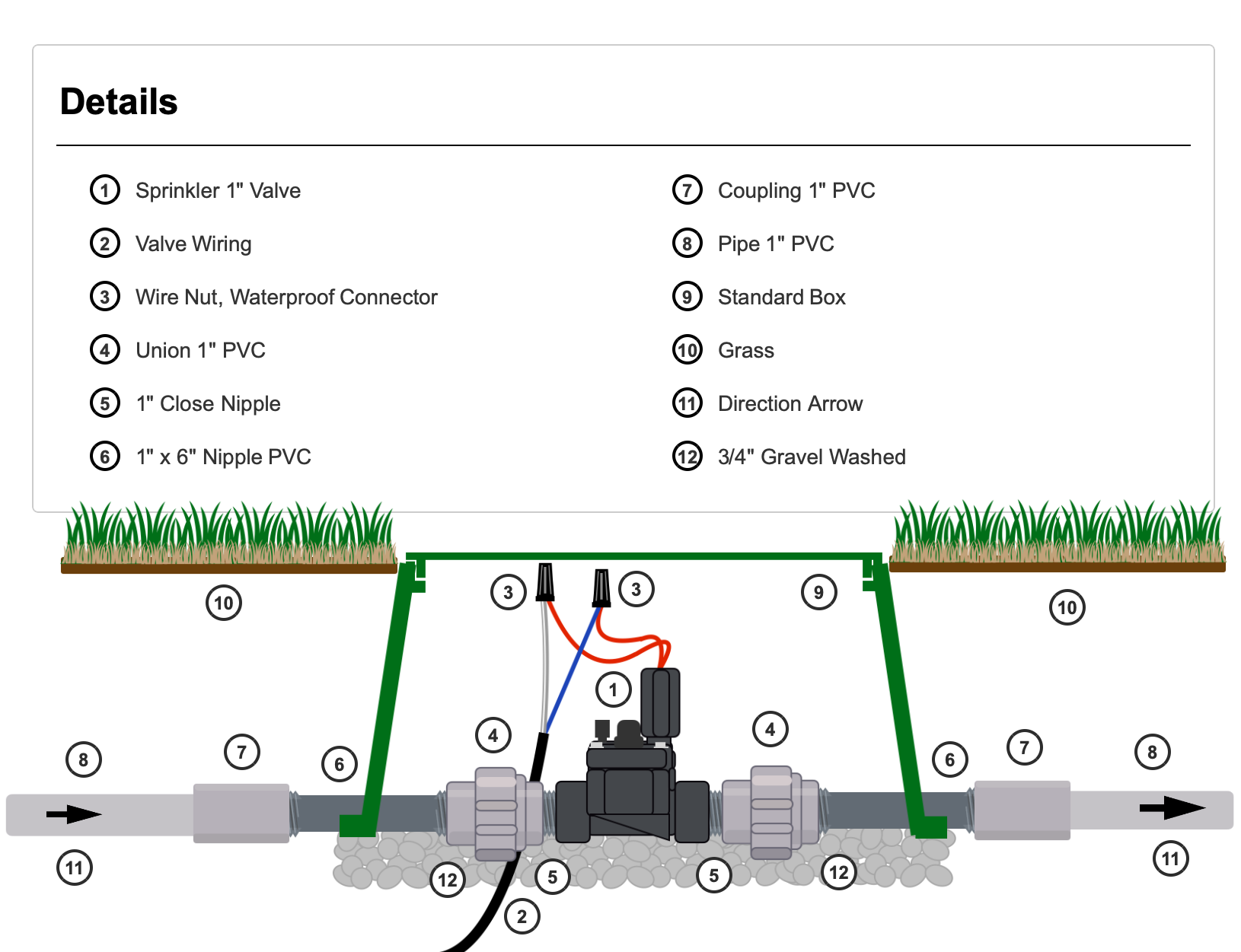

Single Sprinkler Valve Installation (1")
Complete single zone sprinkler valve installation detail showing all components needed to install or replace a 1" sprinkler valve. Includes valve wiring diagram showing how to connect zone wire and common wire using waterproof wire nut connector. Shows 1" PVC union on inlet side for easy valve removal during maintenance or replacement. Uses proper gravel base for drainage and stability. Standard valve box provides protection and access. Perfect for basic zone valve installations, repairs, or valve replacements in residential sprinkler systems.
Components shown: Sprinkler 1" valve, valve wiring (zone and common wires), wire nut waterproof connector, union 1" PVC, 1" close nipple, 1" x 6" nipple PVC, coupling 1" PVC, 1" PVC pipe, standard valve box, grass, 3/4" gravel washed base, direction arrows showing water flow.
Download Detail

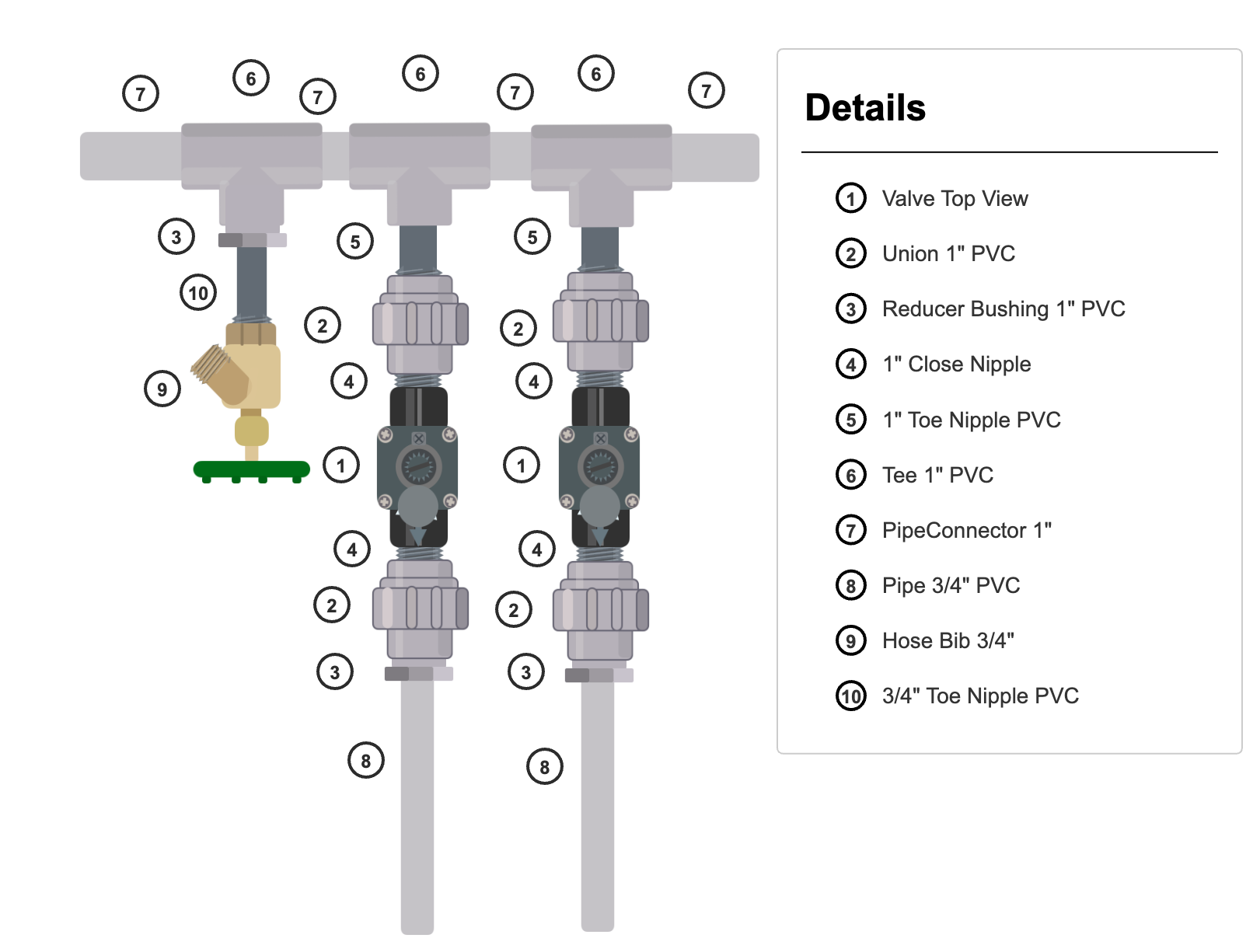

2-Valve Manifold with Drain (1" - Top View)
Professional 2-valve manifold installation shown from top-down perspective. This dual-zone valve setup includes two 1" sprinkler valves with unions for easy removal, a hose bib drain connection for winterization and manual watering, reducer bushings for pipe transitions, and complete PVC tee configuration. The manifold design allows independent control of two irrigation zones while providing convenient drain access. Ideal for medium-sized residential systems requiring multiple zones with maintenance accessibility.
Components shown (top view): 2x 1" sprinkler valves, unions 1" PVC, reducer bushing 1" PVC, 1" close nipples, 1" tee nipples, tee 1" PVC, pipe cap 1" PVC, hose bib 3/4", 3/4" tee nipple PVC, PVC connectors 1", directional flow arrows.
Download Detail

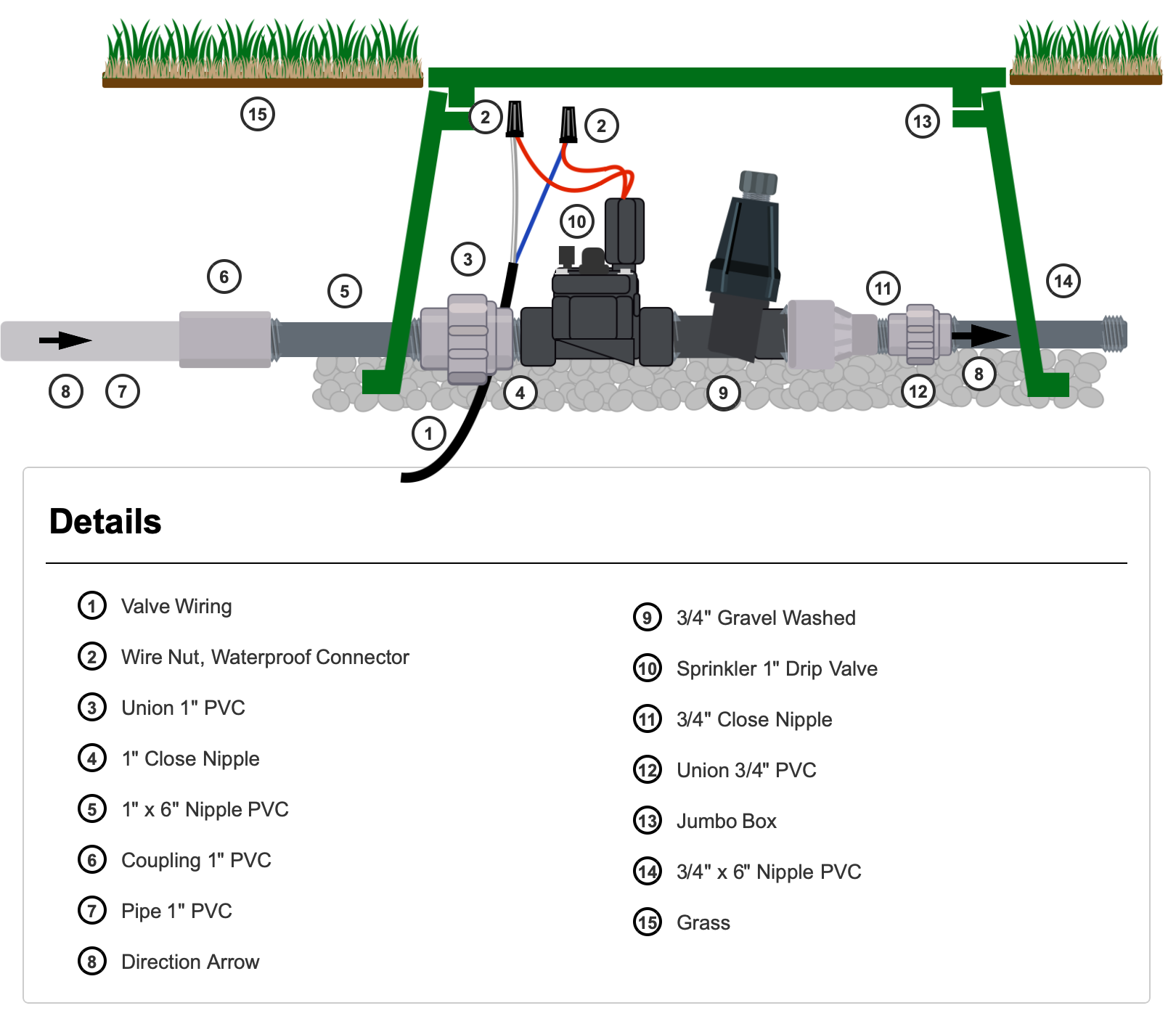

Drip Irrigation Valve Installation with Filter (1")
Complete 1" drip irrigation valve installation detail showing the same valve setup as a standard sprinkler valve but with a drip filter inline for filtering and pressure regulation. The inline drip filter reduces pressure and filters debris to protect drip emitters and tubing. Includes valve wiring with waterproof wire nut connections, unions for easy valve and filter removal, close nipples, gravel base, jumbo valve box for accommodating the filter.
Components shown: Sprinkler 1" drip valve, inline drip filter with pressure regulator, valve wiring with waterproof wire nut connectors, 1" PVC union, 3/4" close nipple, 1" close nipple, 1" x 6" nipple PVC, 1" PVC coupling, 1" PVC pipe, 3/4" gravel washed base, jumbo box, 3/4" x 6" nipple PVC, direction arrows, grass representation.
Download Detail

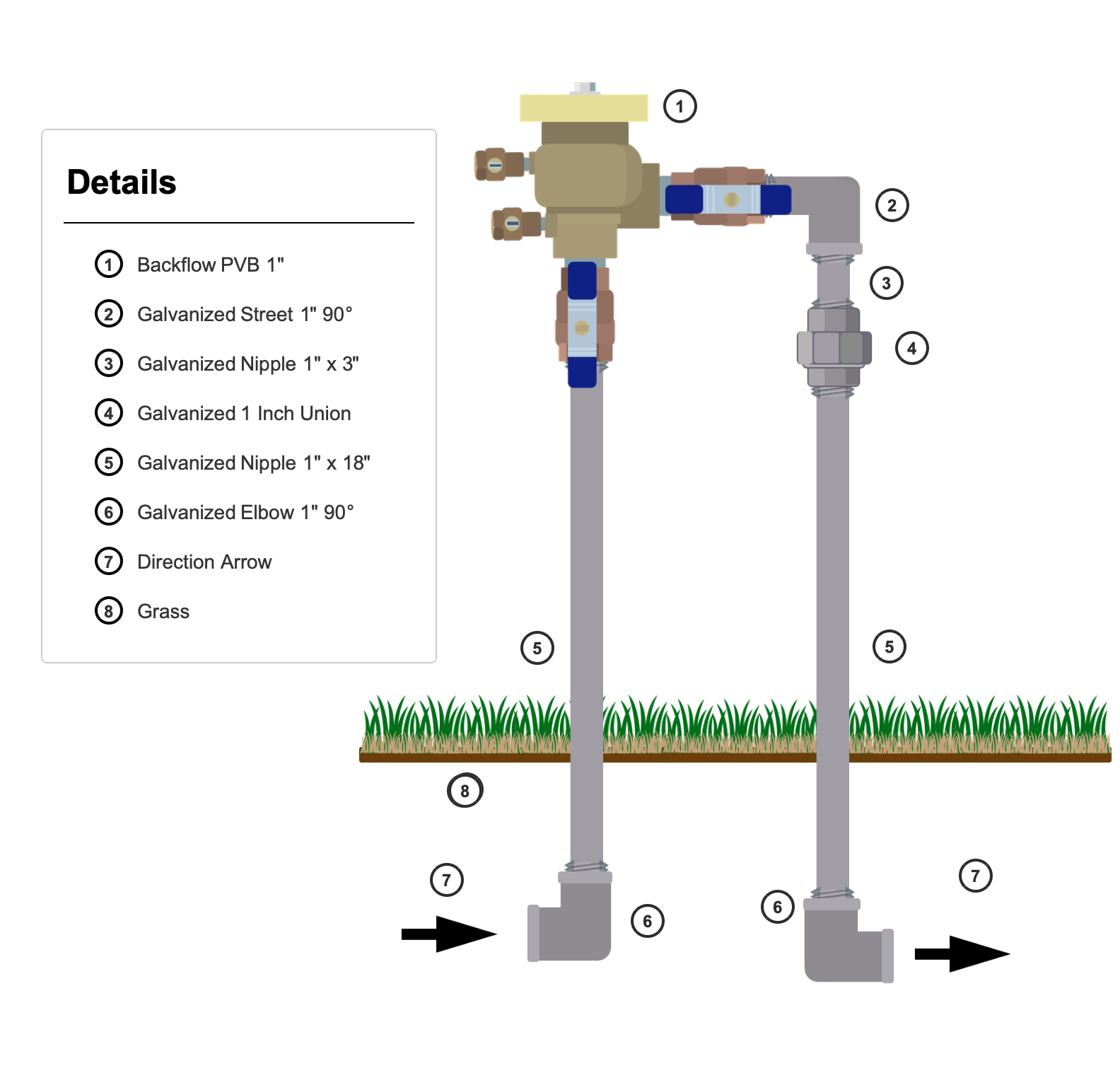

PVB Backflow Preventer Installation (1")
Complete PVB (Pressure Vacuum Breaker) backflow preventer installation detail for residential sprinkler systems. Critical 12-inch minimum height requirement above the highest sprinkler head for proper operation. Uses all galvanized fittings including street elbows and nipples for durability. Includes 1-inch union for easy removal during repair or replacement. Essential for code compliance and protecting your home's potable water supply from contamination.
Components shown: Backflow PVB 1", galvanized street 1" 90° elbows (multiple), galvanized nipples 1" x 5" and 1" x 18", galvanized 1-inch union, galvanized elbow 1" 90°, direction arrows showing water flow, grass representation, proper height notation above sprinklers.
Download Detail

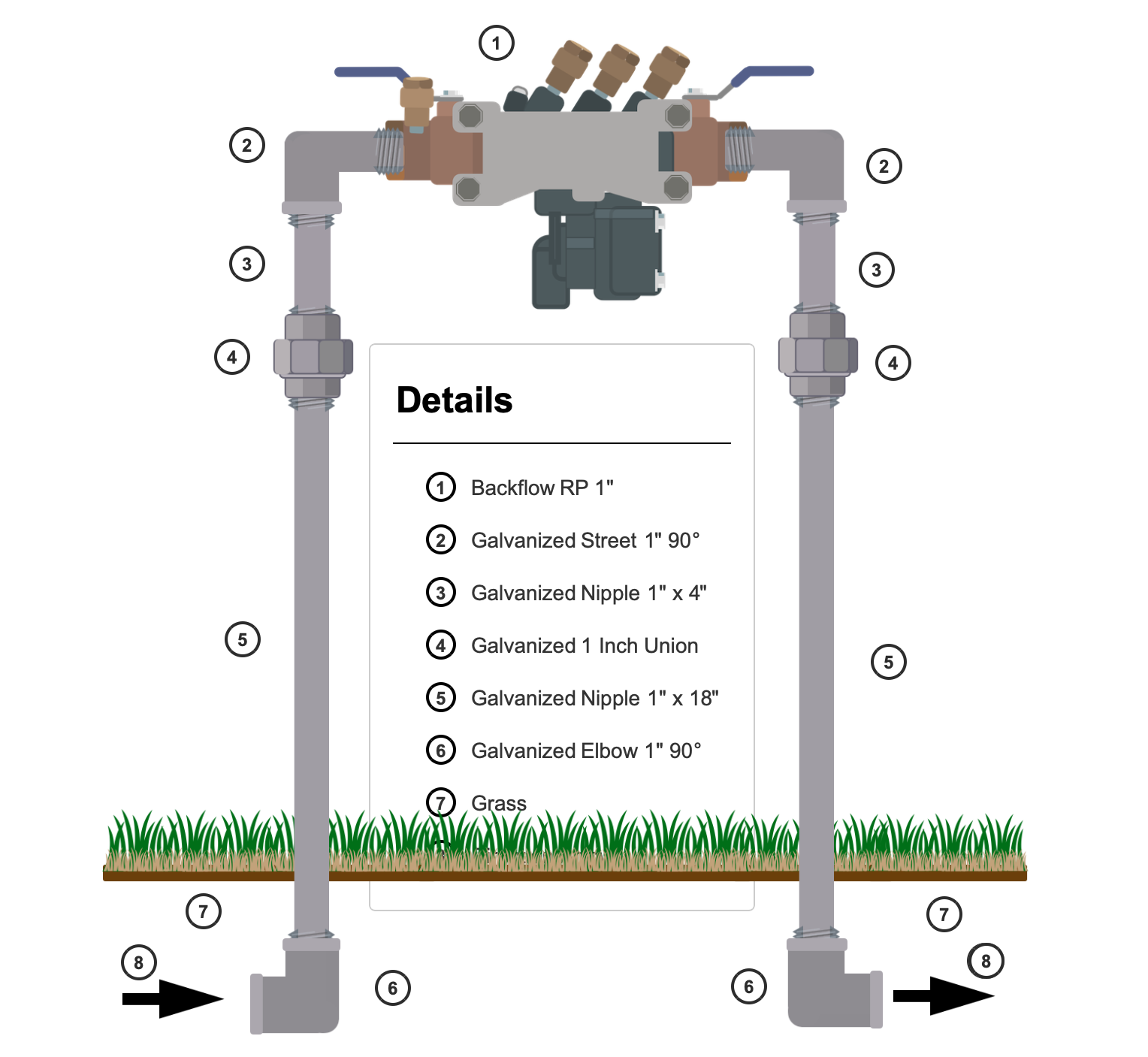

RP Backflow Preventer Installation (1")
Complete RP (Reduced Pressure) backflow preventer installation detail for commercial sprinkler systems and high-hazard residential applications. Shows proper horizontal installation with accessible test cocks for annual testing. Uses galvanized street elbows and nipples for corrosion resistance. Includes 1-inch unions on both sides for easy removal for winterization, repair or replacement. Required for high-hazard applications, commercial properties, and some municipal codes. Provides higher level of protection than PVB backflows.
Components shown: Backflow RP 1", galvanized street 1" 90° elbows (multiple), galvanized nipples 1" x 4" and 1" x 18", galvanized 1-inch unions (2), galvanized elbow 1" 90°, grass representation, direction arrows showing water flow.
Download Detail

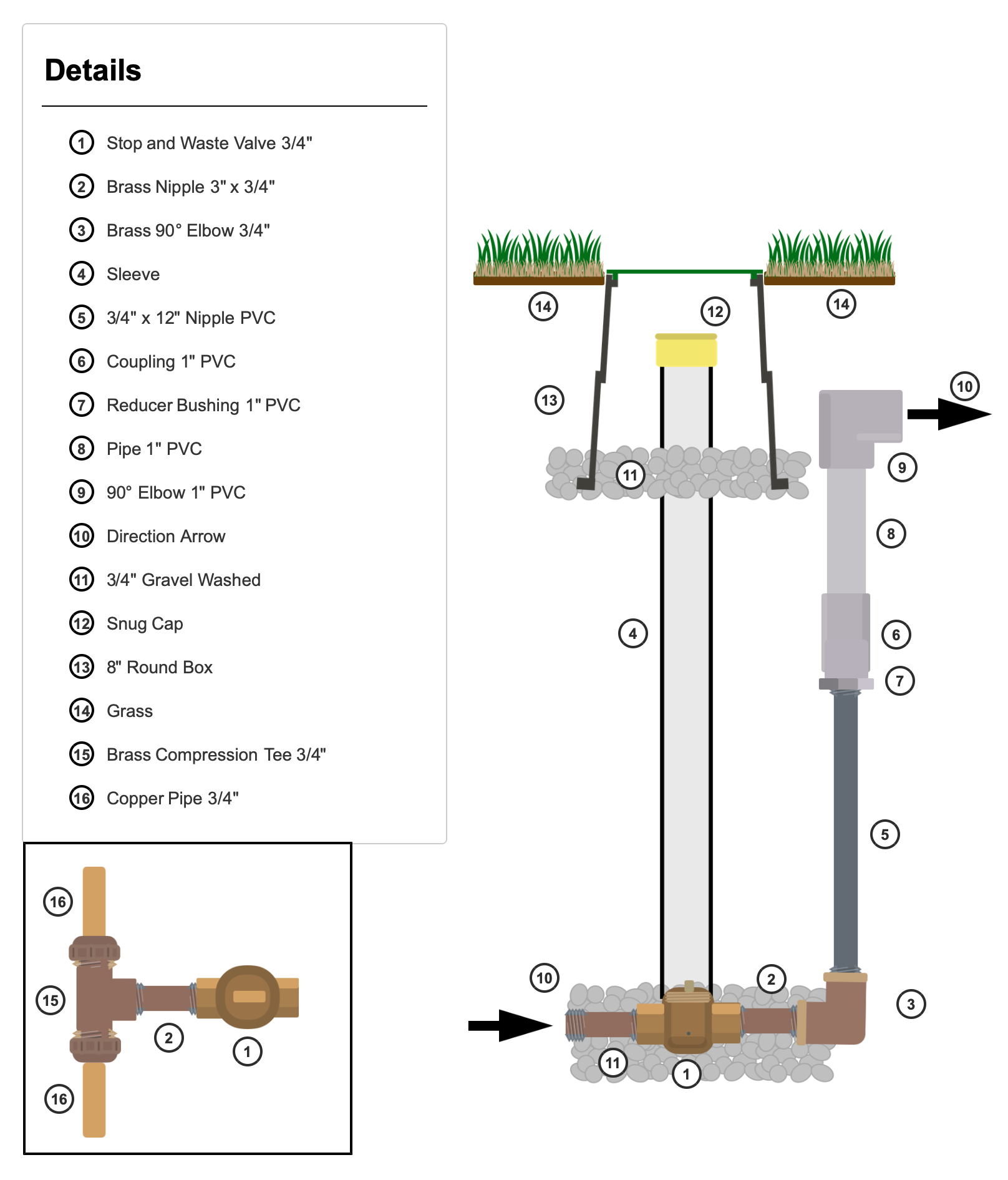

Stop and Waste Valve Installation (3/4")
Complete underground stop and waste valve installation for sprinkler system winterization in cold climates. Shows gravel drainage bed for automatic drainage when valve is shut off, brass compression tee for connecting to copper supply line, and 1" PVC connections to sprinkler system. Includes 8" round valve box for access and protection. This valve allows you to shut off and drain the main line to prevent freeze damage in winter. The waste port drains automatically into the gravel bed when valve is closed.
Components shown: Stop and waste valve 3/4", brass nipple 3" x 3/4", brass 90° elbow 3/4", sleeve, 3/4" x 12" nipple PVC, 1" coupling PVC, reducer bushing 1" PVC, 1" PVC pipe, 90° elbow 1" PVC, direction arrows, 3/4" gravel washed drainage bed, short cap, 8" round valve box, grass, brass compression tee 3/4", copper pipe 3/4" (supply line), inset detail showing brass fittings assembly.
Download Detail

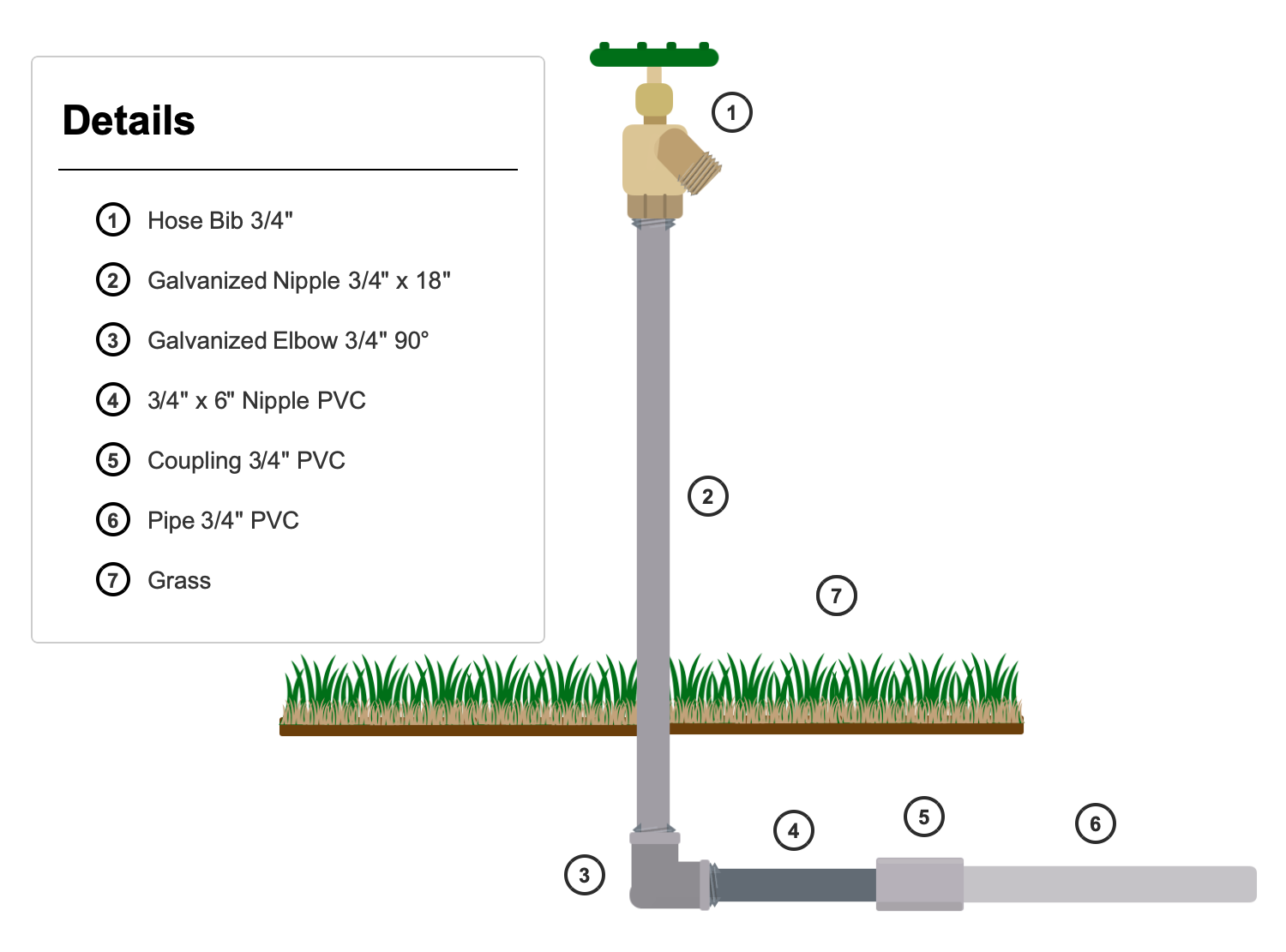

Hose Bib Installation (3/4")
Simple above-ground hose bib installation for manual watering access. Galvanized fittings transition to PVC underground pipe.
Components: Hose bib 3/4", galvanized nipple 3/4" x 18", galvanized elbow 3/4" 90°, 3/4" x 6" nipple PVC, coupling 3/4" PVC, pipe 3/4" PVC, grass.
Download Detail

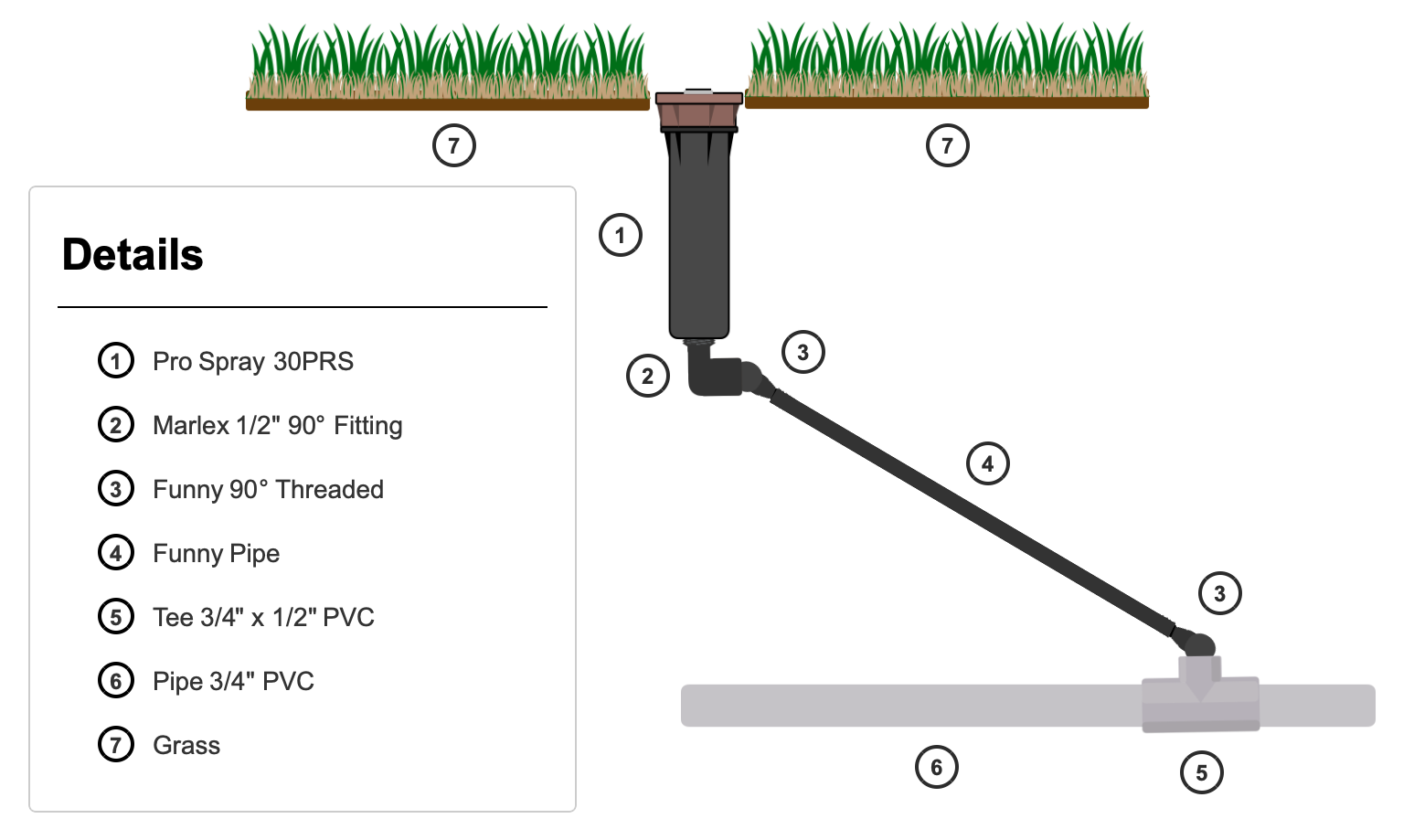

Swing Joint Assembly with Popup Sprinkler Head
Professional swing joint installation showing how to properly connect a popup sprinkler head to the lateral line. Uses marlex 1/2" 90° fitting attached to lateral pipe, funny 90° threaded connector, and funny pipe for flexibility. Topped with Hunter Pro Spray 30PRS popup sprinkler head. This flexible connection prevents sprinkler head breakage from ground movement, settling, frost heave, or mower impacts.
Components shown: Marlex 1/2" 90° fitting, funny 90° threaded connector, funny pipe (swing assembly), Pro Spray 30PRS popup head, 3/4" x 1/2" PVC tee for lateral connection, 3/4" PVC lateral pipe, grass representation.
Download Detail

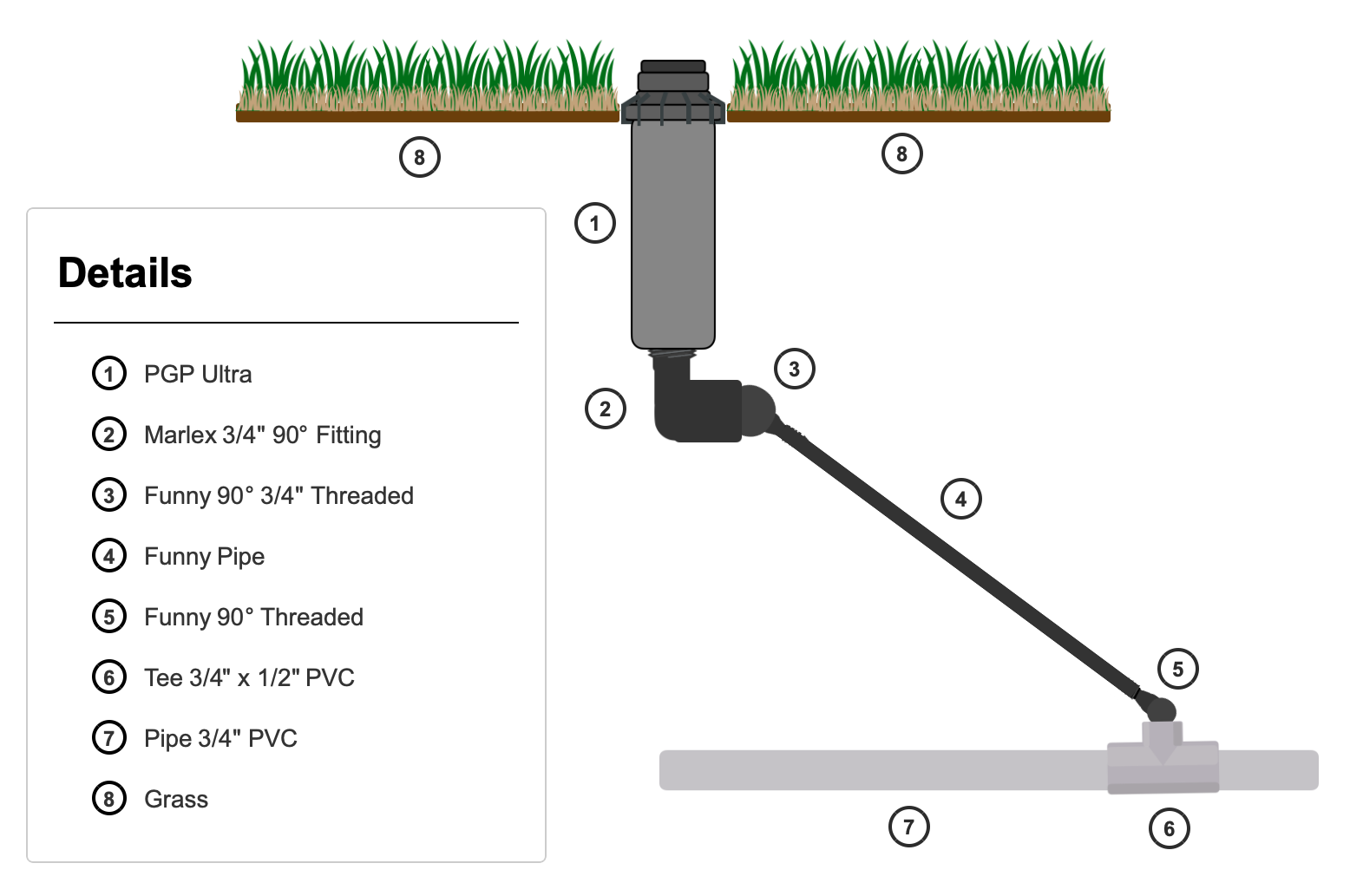

Swing Joint Assembly with Rotor Sprinkler Head
Professional swing joint installation showing how to properly connect a rotor sprinkler head to the lateral line. Uses marlex 3/4" 90° fitting attached to lateral pipe, funny 90° threaded connector, and funny pipe for flexibility. Topped with Hunter PGP Ultra rotor sprinkler head. This flexible connection prevents sprinkler head breakage from ground movement, settling, frost heave, or mower impacts. Rotor heads require 3/4" fittings for higher flow rates compared to popup spray heads.
Components shown: PGP Ultra rotor head, marlex 3/4" 90° fitting, funny 90° 3/4" threaded connector, funny pipe (swing assembly), 3/4" x 1/2" PVC tee for lateral connection, 3/4" PVC lateral pipe, grass representation.
Download Detail
Create Details Showing Your Preferred Methods
Have a different preferred installation approach? Want to document your specific techniques or local code requirements? I created all the diagrams above using my free Irrigation Detail Generator to show my preferred methods - you can use the same tool to create diagrams showing yours.
With the Detail Generator you can:
- Create diagrams showing your preferred installation techniques and part configurations
- Document different approaches that work better for your region or soil conditions
- Customize pipe sizes, valve brands, and component selections to match your preferences
- Show site-specific solutions or code-required configurations
- Export high-quality PNG images perfect for training, permits, or customer proposals
Frequently Asked Questions About Sprinkler System Diagrams
What is a sprinkler system layout diagram?
A sprinkler system layout diagram is a detailed illustration showing how irrigation components are installed and connected. These diagrams include valve manifolds, backflow preventers, swing joints, wiring connections, and proper assembly methods. These free sprinkler system layout diagrams follow professional installation standards and include all necessary parts and connections.
How do I use these lawn sprinkler layout examples?
These lawn sprinkler layout examples can be downloaded and used as reference guides during installation. Each diagram shows labeled components, proper connections, and installation depths. Use them for DIY installations, contractor reference, permit applications, or sprinkler valve replacement projects. All diagrams are print-ready and created to professional standards.
Do you have backflow preventer installation diagrams?
Yes! This page provides detailed installation diagrams for both PVB (Pressure Vacuum Breaker) and RP (Reduced Pressure) backflow preventers for sprinkler systems. Each backflow preventer diagram shows connections, galvanized fittings, unions, and drainage requirements. These are essential components for code compliance in any sprinkler system layout.
What is a swing joint and why do I need one?
A swing joint is a flexible connection between the lateral pipe and sprinkler head using marlex fittings and funny pipe. These swing joint installation diagrams show how to properly assemble these connections to prevent head breakage from ground movement, settling, or mower impacts. Swing joints are included in professional lawn sprinkler layout plans.
Can I use these diagrams for sprinkler valve replacement?
Absolutely! These sprinkler valve replacement diagrams show proper disassembly and assembly of both single valves and valve manifolds. The diagrams include unions for easy removal, wiring connections, and all necessary fittings. Perfect for replacing old valves or upgrading to new valve technology.
