Hunter Pro-Spray High Efficiency Nozzles: The Complete Guide

Sprinkler System Calculator GPM Calculator Zone Calculator

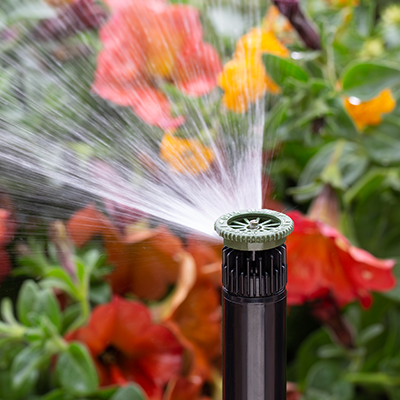

Hunter Pro-Spray High Efficiency nozzles showing various VAN models

Photo courtesy of Hunter Industries Incorporated

Understanding Pro-Spray High Efficiency Technology

Hunter's Pro-Spray High Efficiency (HE) nozzles represent the pinnacle of spray nozzle innovation, combining Variable Arc Nozzle (VAN) technology with pressure-compensating design to deliver superior water efficiency and uniformity. These nozzles are engineered to save water while providing exceptional coverage across a wide range of operating conditions.

The key innovation behind HE nozzles is their pressure-compensating technology. Unlike standard spray nozzles that deliver varying flow rates depending on system pressure, Pro-Spray HE nozzles maintain consistent flow from 25 to 50 PSI. This ensures every head on your system delivers the same amount of water, regardless of its position in the zone or elevation changes in your landscape.

Key Benefits of Pro-Spray HE Nozzles:

  • Up to 35% water savings compared to standard spray nozzles
  • Matched precipitation rate of 1.57 in/hr across all models
  • Pressure-compensating for consistent performance (25-50 PSI)
  • Reduced misting and wind drift with larger water droplets
  • Superior distribution uniformity for healthier landscapes
  • Color-coded for easy identification of arc patterns
Hunter's Official Pro-Spray HE Product Page - Detailed Specifications

Variable Arc Nozzle (VAN) Technology

The Variable Arc Nozzle (VAN) is the heart of Pro-Spray HE efficiency. Unlike traditional fixed-arc nozzles that require different models for each spray pattern, VAN nozzles allow you to adjust the arc from 0° to 360° with a simple turn of a tool or screwdriver.

How VAN Technology Works

VAN nozzles use a sophisticated internal mechanism that adjusts water flow based on the selected arc. As you increase the arc, the nozzle automatically adjusts the flow rate to maintain the same precipitation rate across all patterns. This means:

  • A 90° arc delivers exactly 1/4 the water of a 360° arc
  • A 180° arc delivers exactly 1/2 the water of a 360° arc
  • All arcs maintain the same 1.57 in/hr precipitation rate
  • No over or under-watering regardless of arc setting

Advantages of Adjustable Arc:

  • Reduce inventory - fewer nozzle models to stock
  • Field-adjustable for landscape changes
  • Precision tuning for exact coverage needs
  • Simplified troubleshooting and maintenance
  • Perfect for irregular shapes and custom patterns

Pro-Spray HE-VAN Nozzle Models

Hunter offers Pro-Spray HE-VAN nozzles in three radius ranges, each designed for specific landscape applications. All models feature the same pressure-compensating technology and matched 1.57 in/hr precipitation rate.

Model Radius Range Coverage Area Best Applications Shop
HE-VAN-8 5' - 8' Small spaces Tight garden beds, borders, small turf areas Buy on Amazon
HE-VAN-10 7' - 10' Small-medium areas Garden beds, small lawns, landscaping Buy on Amazon
HE-VAN-12 8' - 12' Medium areas Residential lawns, medium landscape beds Buy on Amazon
HE-VAN-15 12' - 15' Large coverage Larger turf areas, parks, commercial landscapes Buy on Amazon

Color-Coded Identification

Pro-Spray HE nozzles use an intuitive color-coding system that makes identifying radius ranges easy:

  • Tan/Brown: HE-VAN-8 (5'-8' radius)
  • Green: HE-VAN-10 (7'-10' radius)
  • Black: HE-VAN-12 (8'-12' radius)
  • Blue: HE-VAN-15 (12'-15' radius)

This color-coding extends to the nozzle body and helps landscape professionals and homeowners quickly identify which nozzle is installed, making maintenance and adjustments simple and error-free.

Shop Pro-Spray HE Nozzles:

All HE-VAN models are available individually or in multipacks. When purchasing, consider:

  • Match nozzle radius to your spacing requirements
  • Buy variety packs for mixed landscape areas
  • Consider extras for future adjustments
  • Pair with Pro-Spray PRS40 bodies for best performance

Pressure Compensation: The Game-Changer

The pressure-compensating feature of Pro-Spray HE nozzles is what truly sets them apart from standard spray nozzles. Understanding this technology is key to appreciating the water savings and improved performance these nozzles deliver.

The Problem with Standard Nozzles

Traditional spray nozzles deliver more water at higher pressures and less water at lower pressures. In a typical irrigation zone:

  • Heads closer to the valve operate at higher pressure
  • Heads farther from the valve operate at lower pressure
  • Heads at different elevations experience pressure variations
  • This creates uneven watering with some areas getting too much and others too little

How Pressure Compensation Solves This

Pro-Spray HE nozzles use an internal pressure-regulating mechanism that maintains consistent flow across the entire operating range (25-50 PSI):

Real-World Example:

On a zone with pressure varying from 30 PSI (at the farthest head) to 45 PSI (at the closest head):

  • Standard Nozzles: Flow varies by 30-40%, causing severe over/under-watering
  • HE-VAN Nozzles: Flow remains constant at 1.57 in/hr, ensuring uniform coverage

Water Savings Breakdown

The combination of pressure compensation and optimized droplet size yields significant water savings:

  • Reduced over-watering: No high-pressure heads dumping excess water
  • Eliminated under-watering: Low-pressure heads deliver full designed flow
  • Less wind drift: Larger droplet size reduces evaporation and drift
  • Better soil penetration: Optimal droplet size promotes absorption
  • Total savings: Up to 35% reduction in water usage

Installation and Operational Guidelines

Recommended Equipment

For optimal performance, pair Pro-Spray HE nozzles with Hunter Pro-Spray spray bodies:

  • Pro-Spray PRS40 Bodies: Built-in 40 PSI pressure regulation for perfect HE nozzle performance
  • Pro-Spray Standard Bodies: Compatible when system pressure is already regulated
  • Pop-up Heights: Available in 4", 6", and 12" models for various landscape needs

Operating Pressure Requirements

Pressure Guidelines:

  • Optimal Range: 25-50 PSI (pressure compensation fully active)
  • Recommended: 40 PSI for best performance and longevity
  • Below 25 PSI: Nozzle will still function but flow may be reduced
  • Above 50 PSI: Use Pro-Spray PRS40 bodies for pressure regulation

Spacing and Layout

Proper spacing is critical for HE nozzles to achieve their matched 1.57 in/hr precipitation rate:

  • Head-to-Head Coverage: Always space heads so each reaches adjacent heads
  • Square Spacing: Most common for rectangular areas
  • Triangular Spacing: More efficient for irregular shapes
  • Spacing Distance: Equal to the nozzle's radius (e.g., 12' radius = 12' spacing)

Arc Adjustment

VAN nozzles are field-adjustable for precise coverage:

  1. Insert adjustment tool or flat-blade screwdriver into nozzle top slot
  2. Turn clockwise to increase arc, counter-clockwise to decrease
  3. Arc adjusts in continuous increments from 0° to 360°
  4. Make adjustments with system running for immediate feedback
  5. Fine-tune to eliminate overspray on hardscapes

Pro Installation Tip:

When retrofitting from standard nozzles to HE-VAN, you may be able to reduce the number of heads per zone due to better distribution uniformity. This can lower installation costs and reduce maintenance.

Pro-Spray HE vs. Other Nozzle Technologies

HE-VAN vs. Standard Fixed Spray Nozzles

Feature Pro-Spray HE-VAN Standard Fixed Spray
Precipitation Rate 1.57 in/hr (matched) 1.5-2.0 in/hr (varies)
Pressure Compensation Yes (25-50 PSI) No
Arc Adjustment 0° to 360° adjustable Fixed arcs only
Water Savings Up to 35% Baseline
Distribution Uniformity Excellent (DU 0.65+) Good (DU 0.55-0.60)

Real-World Performance Testing: HE-VAN vs. Rain Bird

See how Pro-Spray HE nozzles compare to Rain Bird's high-efficiency nozzles in this detailed side-by-side performance test:

Watch: Professional testing comparing Hunter Pro-Spray HE nozzles with Rain Bird high-efficiency nozzles. This comprehensive test evaluates coverage patterns, distribution uniformity, and real-world performance.

HE-VAN vs. MP Rotator

While both are high-efficiency options, they serve different needs:

Pro-Spray HE-VAN

Precipitation Rate: 1.57 in/hr

Application: Standard spray pattern

Best For: Quick watering, shorter run times, gentle slopes

Run Time: Moderate (similar to standard sprays)

MP Rotator

Precipitation Rate: 0.4-0.8 in/hr

Application: Rotating streams

Best For: Clay soils, steep slopes, maximum water savings

Run Time: Longer (2-4× standard sprays)

When to Choose Pro-Spray HE

  • Replacing existing spray systems with minimal controller reprogramming
  • Landscapes with gentle slopes or well-draining soils
  • Systems with significant pressure variations between heads
  • Areas requiring precise arc control and pattern customization
  • Commercial properties with limited watering windows
  • Retrofits where infrastructure supports higher flow rates

Maintenance and Troubleshooting

Regular Maintenance

Pro-Spray HE nozzles are designed for reliability, but regular maintenance ensures peak performance:

  • Monthly: Visual inspection during operation for proper spray pattern
  • Quarterly: Check for clogged nozzles or damaged components
  • Annually: Remove and clean internal filter screens
  • As Needed: Adjust arcs for landscape changes

Common Issues and Solutions

Problem: Reduced spray distance or uneven pattern

Causes:

  • Clogged nozzle orifice or filter screen
  • Low system pressure (below 25 PSI)
  • Damaged nozzle body

Solutions:

  • Remove nozzle and flush with clean water
  • Clean or replace filter screen
  • Check system pressure and adjust if needed
  • Replace damaged nozzle

Problem: Excessive misting or fogging

Causes:

  • System pressure too high (above 50 PSI)
  • Wrong nozzle model for application

Solutions:

  • Install Pro-Spray PRS40 bodies for pressure regulation
  • Check static and dynamic pressure
  • Consider using larger radius nozzle at lower spacing

Nozzle Replacement

HE-VAN nozzles are designed for easy replacement:

  1. Turn off irrigation zone
  2. Pull up spray body riser to expose nozzle
  3. Unscrew nozzle counter-clockwise
  4. Install new nozzle, hand-tight only
  5. Adjust arc to desired pattern
  6. Test operation and fine-tune as needed

System Design and Run Time Calculations

Understanding Matched Precipitation

The beauty of Pro-Spray HE nozzles is their consistent 1.57 in/hr precipitation rate across all models and arc patterns. This simplifies irrigation scheduling significantly.

Calculating Run Times

To determine appropriate run times for your HE-VAN system:

Basic Run Time Formula:

Run Time (minutes) = (Desired Water Application in inches × 60) / Precipitation Rate

Example: To apply 1 inch of water with HE-VAN nozzles (1.57 in/hr):

Run Time = (1 × 60) / 1.57 = 38 minutes

Seasonal Adjustments

Adjust run times based on seasonal water requirements:

  • Summer (Peak Demand): 3-4 times per week, 38-45 minutes per run
  • Spring/Fall: 2-3 times per week, 25-35 minutes per run
  • Winter (Dormant): As needed, 15-25 minutes per run

These are general guidelines. Actual requirements vary based on soil type, plant material, sun exposure, and local climate.

Calculate Your Complete System Zone Calculator Calculate Run Times

Shop Hunter Pro-Spray HE-VAN Nozzles

Ready to upgrade your irrigation system with Pro-Spray High Efficiency nozzles? These nozzles are available on Amazon with fast shipping:

HE-VAN-8

Radius: 5'-8'

Best For: Small garden beds and tight spaces

Shop 8' Model

HE-VAN-10

Radius: 7'-10'

Best For: Small to medium landscape areas

Shop 10' Model

HE-VAN-12

Radius: 8'-12'

Best For: Residential lawns and medium beds

Shop 12' Model

HE-VAN-15

Radius: 12'-15'

Best For: Large turf areas and parks

Shop 15' Model

Why Buy on Amazon?

  • Fast Prime shipping available
  • Easy returns if not the right fit
  • Customer reviews from real users
  • Often available in multipacks for better value
  • Compatible with standard Pro-Spray bodies

Conclusion: The Right Choice for Efficient Irrigation

Hunter Pro-Spray High Efficiency nozzles represent a significant advancement in spray nozzle technology. The combination of Variable Arc Nozzle (VAN) adjustability and pressure-compensating design delivers what irrigation professionals have long sought: consistent, efficient water application across varying conditions.

Whether you're installing a new system or retrofitting an existing one, Pro-Spray HE nozzles offer compelling advantages:

  • Up to 35% water savings compared to standard sprays
  • Matched precipitation across all heads regardless of pressure
  • Field-adjustable arcs reduce inventory and simplify maintenance
  • Superior distribution uniformity for healthier landscapes
  • Easy installation on standard Pro-Spray bodies

For landscapes where MP Rotators' extended run times aren't practical, but efficiency is still a priority, Pro-Spray HE nozzles are the ideal solution. They deliver exceptional performance while maintaining run times comparable to traditional spray systems.

By choosing Pro-Spray HE nozzles, you're investing in technology that saves water, reduces utility costs, and promotes healthier landscapes through superior irrigation uniformity.
