How To Use Drip Line Puncture Connectors: A Step-by-Step Guide

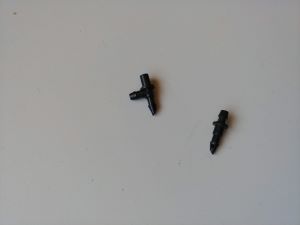

Various types of drip line puncture connectors

Types of Puncture Connectors

Puncture connectors come in various designs, but all serve the same purpose. This image showcases different types you might encounter in your irrigation project.

Close-up of drip line puncture connectors

Understanding Puncture Connectors

Puncture connectors are essential components used to connect 1/4" tubing to 1/2" supply tubing. This connection allows you to add emitters, creating a more versatile irrigation system.

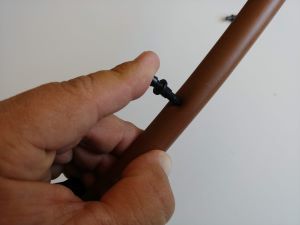

Demonstrating how to insert a drip line puncture connector

Installing the Connector

To install a puncture connector:

  1. Grasp the 1/2" tubing firmly in one hand.
  2. Press the sharp end of the puncture connector through the tubing.
  3. While tools are available to assist with this process, they're often unnecessary for most installations.

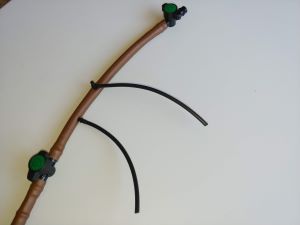

Attaching 1/4 inch tubing to a puncture connector

Attaching 1/4" Tubing

Once the puncture connector is in place:

  1. Take your 1/4" tubing.
  2. Attach it to the exposed end of the puncture connector.
  3. This 1/4" line will supply water to an emitter, bubbler, or micro spray.

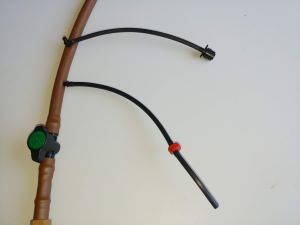

Cutting tubing and attaching drip emitters

Finalizing the Installation

To complete your drip line setup:

  1. Cut the 1/4" tubing to the length you need for each plant or area.
  2. Attach the appropriate emitters to the end of each line.

For more detailed information on this step, check out our guide on adding drip supply lines and emitters.
