Sprinkler System Valve Wiring: A Comprehensive Guide

Understanding Sprinkler Valve Wiring

Valve wiring for sprinkler systems can be straightforward, but proper installation is crucial to avoid problems. Here are key points to remember:

Choosing the Right Wire

Always use an approved wire designed specifically for sprinkler systems. These wires are color-coded to simplify installation.

Common Wire Connection

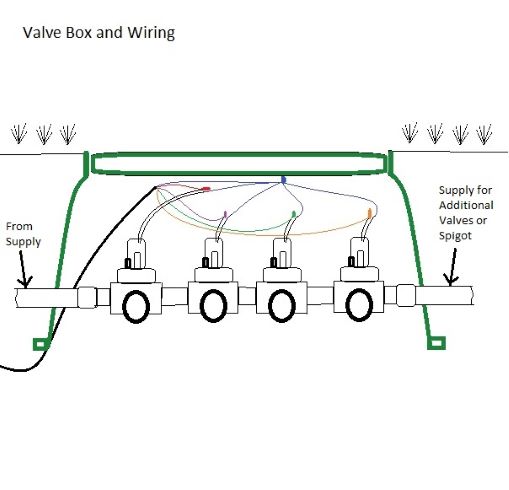

When wiring valves, you need to choose a color for your common wire. While white is typically used, our example uses blue for clarity. The common wire connects to one wire from each valve solenoid.

Wiring Process

Individual Valve Wiring

After connecting the common wire, you'll have one wire left for each valve. Connect a different color wire to each of these remaining valve wires.

Color Coding System

While the specific colors don't matter, using a consistent color code makes installation and future maintenance easier. Here's an example color code:

1. Red
2. Yellow
3. Blue
4. Green
5. Orange
6. Purple
7. Gray
8. Black
9. Pink

Important Notes and Tips

• Valve solenoids have two wires. As they're connected to an electromagnet, polarity doesn't matter.
• Consistency in your wiring approach will make troubleshooting and expanding your system easier in the future.
• Always ensure connections are secure and protected from moisture to prevent shorts and system failures.
• Label your wires at both ends (at the valve and at the controller) for easy identification.
• Use waterproof wire connectors to join wires, ensuring a long-lasting connection.
• Consider using a multimeter to test connections before burying the wires.

By following these guidelines, you'll create a reliable and easily maintainable sprinkler system wiring setup. Remember, if you're unsure about any step in the process, it's always best to consult with a professional irrigation specialist.
