Ultimate Sprinkler System and Head Layout Guide

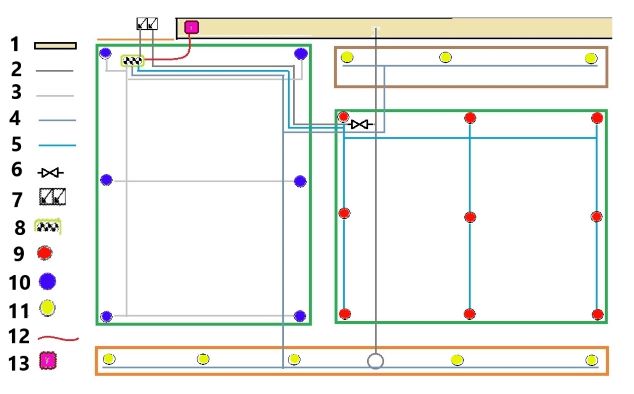

Detailed sprinkler system layout example for a residential property

Comprehensive System Layout Example

Essential Components of an Efficient Sprinkler System

  1. Residence
  2. Main Line
  3. Zone 1
  4. Zone 2
  5. Zone 3
  6. Stop and Waste
  7. Backflow Preventer
  8. Automatic Sprinkler Valves
  9. Pop-up Spray Sprinkler Head
  10. Rotor Sprinkler Head
  11. Drip Connection or Bubbler
  12. Wiring for Irrigation Valves
  13. Irrigation/Sprinkler Timer

This detailed example showcases a typical front yard sprinkler system layout. Note the color-coded laterals for clear zone differentiation.

Mastering Sprinkler Head Layout

The Critical Importance of Proper Head Placement

Sprinkler head layout is the cornerstone of your irrigation system's performance. A well-designed layout ensures optimal water distribution and prevents wastage of thousands of gallons each season.

Achieving Perfect Head-to-Head Coverage

Head-to-head coverage is a fundamental principle in professional sprinkler system design. It ensures every area receives water from at least two sprinkler heads, with each head's spray reaching or slightly overlapping adjacent heads.

Consider each sprinkler as a geometric shape, characterized by its ARC and Radius. Your layout will typically follow a square or triangle pattern, balancing efficiency with the natural circular coverage of sprinkler heads.
