Drip Line Repair with Male Adapter: A Comprehensive Guide

Water leaking out of a half inch drip line

Understanding the Issue

This image shows a male adapter attached rigidly to existing PVC. While this method is sometimes used, it's not recommended for optimal performance. I often make repairs to match the original installation for consistency.

Broken drip half inch male adapter

Identifying the Damage

This adapter was broken when someone stepped on it, despite being buried. This illustrates the importance of proper installation and protection of your irrigation system components.

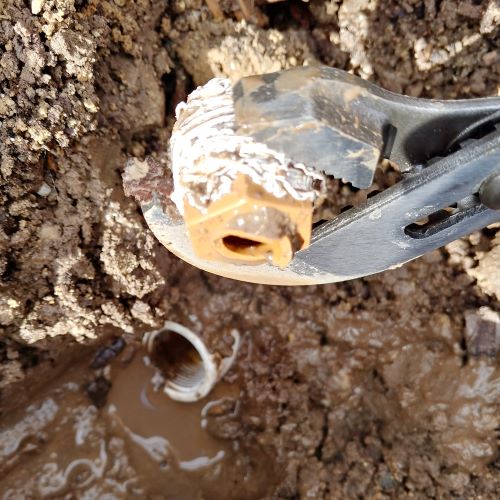

Extracting broken male adapter fitting

Step 1: Remove the Broken Fitting

Carefully extract the broken fitting. If this isn't possible, you may need to replace the PVC fitting entirely, which would require a lateral repair (covered in our lateral break section).

Avoid getting mud or debris in the threads

Step 2: Keep the Area Clean

After extracting the existing fitting, it's crucial to avoid getting mud or debris in the threads or fitting. This ensures a proper seal when installing the new adapter.

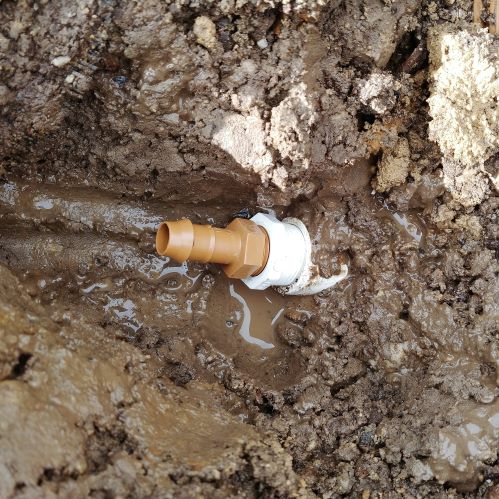

Thread the new male adapter into the existing threads

Step 3: Install the New Adapter

Thread the new male adapter into the existing fitting. In this case, a threaded reducer bushing was needed because the exact fitting wasn't available. Always be prepared to improvise with compatible parts.

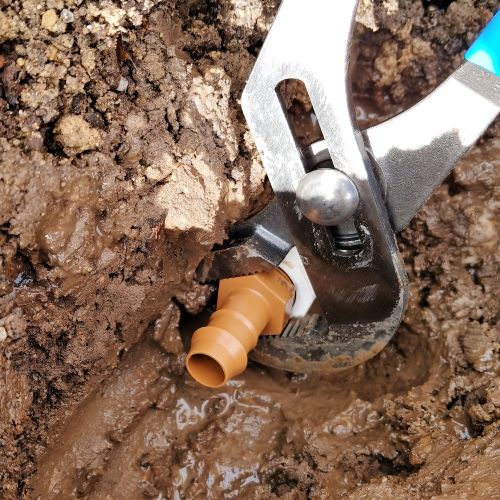

Snugly tighten the male adapter

Step 4: Secure the Fitting

Snugly tighten the fitting(s). While Teflon tape is optional, it's recommended if the fitting is above the surface and visible. This extra step can prevent leaks and extend the life of your repair.

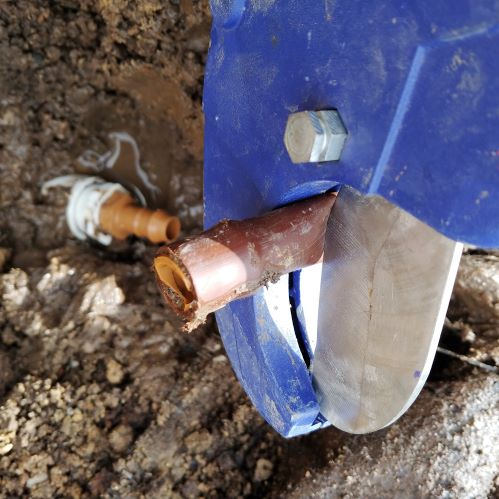

Cutting half inch tubing with PVC cutters

Step 5: Prepare the Tubing

Using PVC cutters, cut off the broken remnants and remove them from the drip tubing. This ensures a clean, straight edge for attaching to the new fitting.

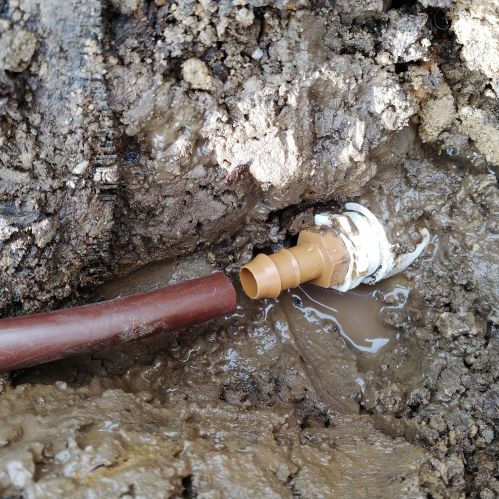

Pushing drip tubing onto a male adapter

Step 6: Attach the Tubing

Push the drip tubing onto the male adapter. Ensure a firm connection to prevent future leaks.

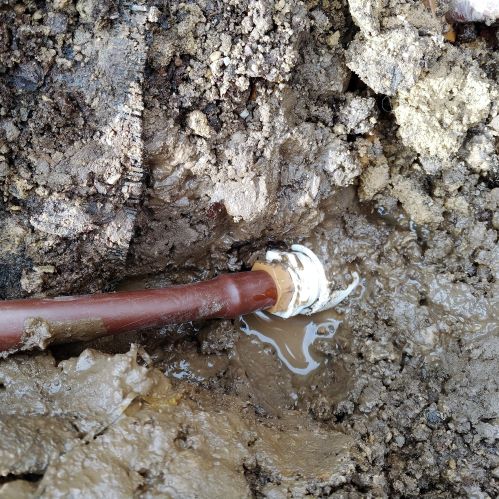

Drip tubing attached with male adapter to PVC pipe

Step 7: Finalize the Connection

The tubing should be pushed all the way to the bottom of the new fitting's collar. These fittings don't require clamps since the drip line pressure should be lower than 40 PSI. Always test your repair before considering the job complete.
